DJI Zenmuse X7 DL-S 16mm F2.8 ND ASPH Lens (Part 1)
- Compatible with Zenmuse X7 and DJI Inspire 2
- Built-in ND Filter
- Made of Carbon Fiber
- DL-S Lens
- Weight: approx. 182g
- Aperture: F2.8
- Focal Length:16mm
- Also available in a set of 4 different lenses

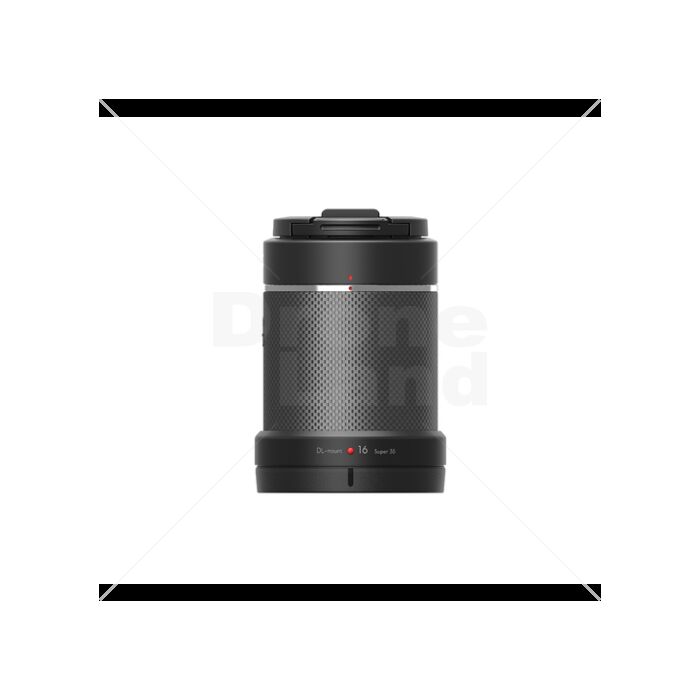

DJI Zenmuse X7 DL-S 16mm F2.8 ND ASPH Lens
The DJI Zenmuse X7 DL-S 16 mm Lens with built-in ND filter is one of the 4 lenses specifically designed for the Zenmuse X7. The lens is made of carbon fiber, which makes the lens durable lightweight. The DJI DL Mountsystem allows you to mount the DL-S 16mm onto the Zenmuse X7.
The DJI DL-Mount; the first aerial lens mount system
DJI uses the recent developed FSI-Cu technology and a thinner interconnection in the Zenmuse X7 sensor. This makes the lens more sensitive to light, due to the larger angle. This allows you to use a smaller and more compact sensor, while the image quality remains the same. This allows for a smaller focal length of 16.84 mm; which is 1/3 of a PL-Mount.
A compact DL-Mount means a lighter mount. The Zenmuse X7 weights about 630g including the lens, and 449 g without lens. When connected to the DJI Inspire 2, the total weight is about 4 kg. The combination of the Zenmuse X7 and the DJI Inspire 2 enables you to make the same exciting shots, as heavy set ups.
4 compatible lenses
| Lens | DL-S 16mm F2.8 ND ASPH | DL 24mm F2.8 LS ASPH | DL 35mm F2.8 LS ASPH | DL 50mm F2.8 LS ASPH |
| Focal Length | 16mm | 24mm | 35mm | 50mm |
| Aperture | F2.8~F16 | F2.8~F16 | F2.8~F16 | F2.8~F16 |
| Max Image Circle | Super 35 | 35mm | 35mm | 35mm |
| Elements/Groups/ASPH | 13/12/4 | 9/8/3 | 9/8/3 | 9/7/2 |
| Depth of Field | 0.40m | 0.65m | 0.85m | 0.93m |
| Front Diameter | 46mm | 46mm | 46mm | 46mm |
| Dimensions (Incl. lenscap) | 55.0x62.0x70.6mm | 55.0x62.0x71.2mm | 55.0x62.0x71.2mm | 55.0x62.0x71.2mm |
| Weight | Ong. 182g | Ong. 178g | Ong. 180g | Ong. 182g |
| Extra | Built-in ND | Leafshutter | Leafshutter | Leafshutter |
What is the difference between a DL and DL-S Lens?
The DL and DL-S differ in the maximum sensor size supported. The DL-S lens supports the Super 35mm, while the other 3 DL lenses (24, 35, 50mm) support full-frame sensors. Both the DL and DL-S lenses can reach a resolution up to 8K.
| Brand | DJI |
|---|---|
| Model | Zenmuse X7 |
| Other EAN's | 6958265154737 |
