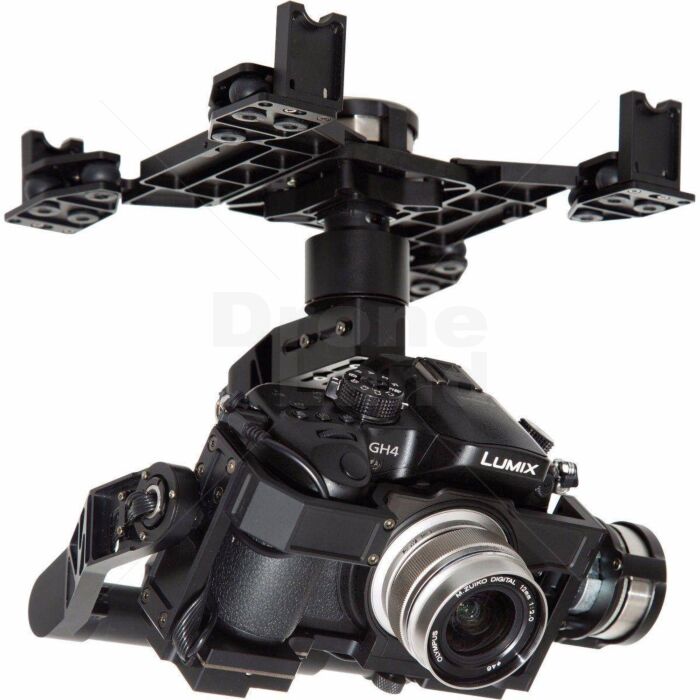

DJI Zenmuse Z15 For Panasonic GH4 (HD)

The DJI Zenmuse Z15-GH4 (HD) gimbal, an upgraded version of the popular Zenmuse Z15-GH3, represents a breakthrough in Zenmuse precision, offering a control range of just ±0.01°. When used with a DJI professional aerial system, your Panasonic GH4/GH3 remains stable and under control even in strong winds and during intense maneuvers.

Built for the Panasonic GH3/GH4
 Each Zenmuse is guaranteed to deliver nothing short of the best in camera control and stabilization. The Zenmuse Z15-GH4 (HD) is built specifically for the the Panasonic GH4 and GH3, so either camera fits perfectly in the gimbal. The Panasonic GH4 is known for its digital film quality images and small body, making it ideal for aerial cinematography and photography. The Zenmuse Z15-GH4 (HD) gimbal connects with your GH4 through a standard HDMI cable, but if you are using a Panasonic GH3 with the gimbal, please use the included GH3 HDMI cable.

3-AXIS Rotation Control
The 3-axis Zenmuse Gimbal system’s creative mechanical design makes control through the transmitter stick both intuitive and easy. Its internal slip rings avoid complicated wiring. Both power and signal lines have been integrated into gimbal’s tubes, resulting in a completely unhindered control axis that offers a maximum yaw of ±360°, pitch of +50°/-140° and a roll of ±40°.

Gimbal Servo Drive Module
What gives every Zenmuse its precision is our specially designed Gimbal Servo Drive Module. Each of these is tailored to the weight and balance of the camera it has been designed to move. This significantly improves control and stability, maximizes torque, while minimizing vibration.

Tech. Specifications:

• Built-in Functions:

  1. Three Modes
     · Orientation-locked
     · Non orientation-locked
     · FPV mode (Reset)
  2. Built-in independent IMU module
  3. DJI-designed servo drives
  4. HDMI HD/AV module
  5. Wireless video transmission module support
  6. Camera shutter control support
  7. Wide range voltage input support
  8. S-Bus/PPM Receiver support
• Supported Camera: Panasonic GH4/GH3
• Supported Lens Currently: OLYMPUS M.ZUIKO DIGITAL ED 12mm f2.0
• Load Weight: 690g(@Panasonic GH4 with OLYMPUS M.ZUIKO DIGITAL ED 12mm f2.0, Battery and SD Card)
• Rotation:
  Pan axis control: ±360° continuous rotation
  Tilt axis control: +50°/-140°
  Roll axis control: ±40°
• Weight: 1.26 Kg
• Dimensions: 233mmX210mmX192mm
